+ Single/Multi import of AutoCAD files (.DXF, .DWG, .DWF) DSTV files (.NC, .NC1, .XML), Excel files (.XLS), or IGES files (.IGS, .IGES), Solidworks* files (.SLDPRT, .SLDASM), PNL files
+ Individual import of DIN and ESSI drawings
+ Reading of pictures (JPG, PNG) scans with recognition of component contours
+ Automatic layer translation
+ Automatic error corrections
+ Adoption of component metadata
+ Easy import via SolidWorks* or Autodesk Inventor** interface
+ Transfer technologies of nested components to identical components
+ Unfolding of bending parts
+ Disassembly of modules

3D Import of:
+ STEP / STP files (AP203, AP214, AP242)
+ Siemens SolidEdge (V18 – SE 2023)
+ Autodesk Inventor (V11 – 2024)
+ Dassault Systèmes CATIA (V5 R8 to V5–6 R2023)
+ Siemens NX (11 – NX 2306)
+ Siemens Parasolid (9.0 – 35.0.149)
+ PTC Pro/E (16 – Creo 10.0)
+ Rhinoceros 3D (version 2 to 7)

Minimum requirement for 3D import is OmniWin Edition Enhanced

+ Numerous positioning, drawing, grouping and labeling functions
+ Parameterizable macros
+ Automatic dimensioning of components and plates
+ 3D view of vertical and bevel components
+ Extensive drawing functions for geometric shapes and labelling
+ Support of absolute and relative as well as polar and orthogonal coordinates
+ Conversion of text objects into closed contours and/or line contours
+ Alignment of text objects to arcs
+ A wide range of Zoom, Snap, Convert and Group functions e.g. trimming of protruding contours
+ Insertion of dimensioning objects
+ Definition of bevel information and quality attributes on sub-contours
+ 3D view of vertical cut or bevel parts
+ Optional setting of start points per contour
+ CAD profiles to support individual configurations

+ Short calculation times
+ Configurable technology database
+ Copy, mirror, rotate and move with collision control
+ Component and contour sequences automatically optimized based on rules or set manually
+ Automatically optimized component, inner contour and process sequence
+ Automatic nesting of orders and projects
+ Reduction of non-productive times by minimizing rapid traverse
+ Reduction of the up and down movements of the torch with collision avoidance
+ Individually adjustable shapes, parameters and positions of lead and cut-out flags
+ Changing the cutting direction
+ Enable and disable contours
+ Automatic rounding of corners
+ Vaporization (Laser)
+ Simulation of the nesting plan

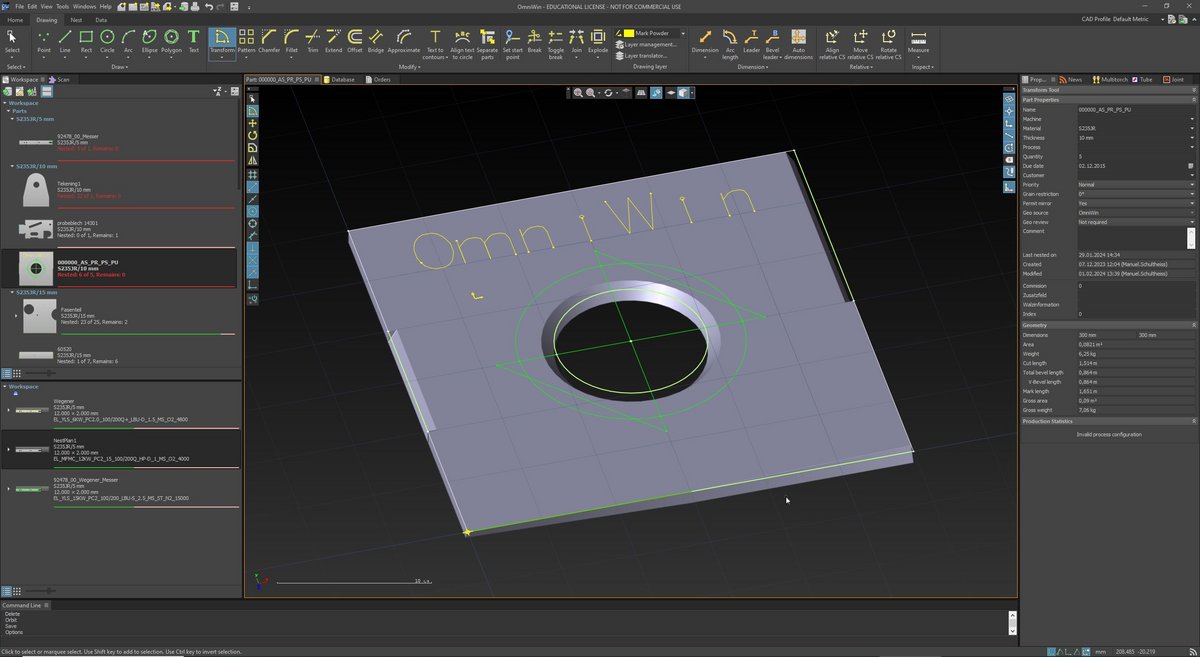

Design and data import

Experience how easy bevel cutting can be. Work in your familiar OmniWin environment and seamlessly integrate the entire beveling process. Import your bevel components directly from CAD quickly and without detours. Design and modify your components with the highest precision. Thanks to the direct display of the bevel geometries, you always have a full overview.

+ Fully integrated bevel cutting in the familiar OmniWin working environment
+ Direct import of bevel parts via CAD import
+ Design and modification of bevel parts
+ Representation of the bevels on parts

Cutting and manufacturing technologies

Increase your efficiency with every cut. Optimally nest bevel parts and use state-of-the-art lead-in, lead-out and corner technologies – from I- to VDS, VAS, YDS, YAS, X- to K-bevels as well as variable bevels.

Benefit from integrated bevel process databases for consistently high component quality. Assign specific quality levels to your bevel geometries and get the most out of your cutting process. Intelligently sequence multiple cuts and rely on full compatibility with all Messer bevel cutting heads for laser, plasma and oxyfuel.

+ Nesting of bevel part
+ Lead-ins, Lead-out and corner technologies for I-, VDS, VAS, YDS, YAS, X, K and variable bevels
+ Integrated bevel process databases for optimal part quality
+ Quality assignment for bevel geometries for cutting optimization
+ Sequencing of multiple bevel cuts
+ Support for all Messer bevel cutting heads (Laser, Plasma, Autogen)

Planning and reporting

Reliably calculate the production time of your bevel plans. Integrate the display of the chamfers directly into your automated production reports.

+ Optional production time calculation for bevel plans
+  Display of bevels in automated production reports

Bevel cutting only available with Option Bevel

+ Completely integrated development of three-dimensional bodies in the plane
+ Large number of geometric bodies typical for apparatus and tank construction
+ Sorting of the geometries according to criteria in categories and subcategories
+ Fully integrated unfolding of three-dimensional solids in the plane
+ Large number of geometric solids typical for apparatus and tank construction
+ Sorting of geometries according to criteria in categories and subcategories

Only available with the Option Unfold

+ Optimization of cutting quality through the use of advanced technologies
+ Various stitch types for the different cutting technologies
+ Single and multiple stitches, manually and automatically applied
+ Thermal pre-piercing or pre-drilling for lead-ins
+ Bridges, also crossed
+ Common cuts
+ Corner loops
+ Rounding of corners
+ Any remnant plate geometries
+ Any plate geometry
+ Skeleton cuts
+ Cutting of stone mold cutting

Technology functions only available in OmniWin Professional

+ Tool sequencing
+ Optimize part sequence
+ Change contour sequence
+ Optimize sequence for heat distribution
+ Grouping

+ Marking of remnant plates
+ Automatic creation of remnant plate
+ Crop cuts
+ Manual splitting of remnant plates
+ Automatic remnant plate reports

+ Simulate tool movement
+ Check the cutting sense and the sequence of processing of the contours in your nesting plan
+ Adapt the speed of the simulation progress

+ Fully integrated order entry and oder management
+ Work order processing with order database

Only available in OmniWin Enhanced and OmniWin Professional

Create drilling operations in CAD mode

Design and define drilling tasks directly within your CAD environment. Drill holes can be inserted into drawings, converted from existing points, or generated via the command line for maximum flexibility. A wide range of drilling types such as through holes, tapped holes, blind holes, and deep drilling are fully supported, including variations with countersinking. Every detail can be set precisely, and all operations are displayed in 3D, ensuring complete accuracy and transparency, even down to the thread representation.

+ Creating drill holes in drawings
+ Converting points to drill holes
+ Creating drill holes from the command line
+ Set drill point properties:
   + Marking hole
   + Through-hole
   + Through-hole with countersink
   + Tapped hole
   + Tapped hole with countersink
   + Blind hole drilling
   + Blind hole drilling with countersink
   + Deep hole drilling (deep hole drilling)
   + 3D representation including thread

Efficient tool and process management

The OmniWin Option Drill includes an integrated drill tool database, making it simple to select and manage tools for every job. Drill holes are clearly visualized in both drawings and nesting layouts, giving operators full control over the process. Users can manually sequence drill holes, group them for efficiency, or rely on the automatic sequencing function, which optimizes the drilling order—for example, when tapping or creating pilot holes before thermal cutting. With built-in machining time calculation, production planning becomes more accurate, predictable, and cost-efficient.

Management of drilling tools

+ Integrated drill database for drilling tools

Creation and modification of nesting plans

+ Display of drill holes in drawings and nesting plans
+ Manual sequencing of drill holes and the ability to group drillings
+ Automatic sequencing of the drilling sequence (e.g. for tapped holes or pre-drilling before thermal cutting)
+ Production time calculation for drilling operations
+ Post-processors for Messer Global Control and Global Connect machines
+ Generation of NC Code for nesting plans (straight and bevel cutting)

Seamless integration into your production

Designed for maximum compatibility, the OmniWin Option Drill works seamlessly with Messer Global Control and Global Connect machines. Dedicated post-processors ensure reliable communication and precise NC code generation. Whether drilling vertically or at an angle, the module guarantees high-quality results and smooth integration into existing nesting plans—allowing your production line to achieve superior performance with minimal effort.

Only available with Option Drill

+ Supports machines with and without automatic carriage positioning
+ Changing of torch distances in the same plan
+ Dynamic connection and disconnection of torches
+ Automatic nesting for multiple torch heads

+ Individual user-based preview of NC programs and export of NC part programs, CSV, XML, DXF and DWG files for nesting plans
+ Machine profile based settings of production data storage locations

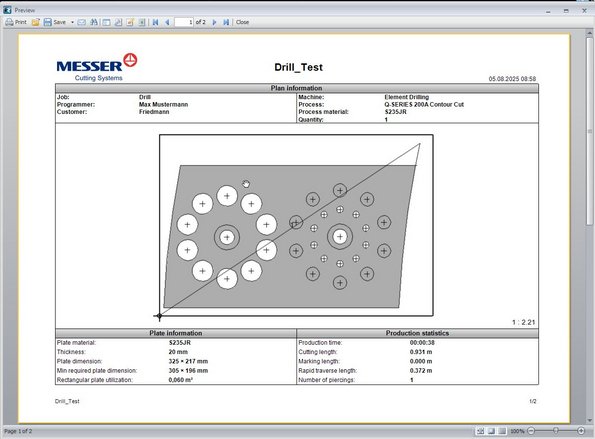

+ Preconfigured reports for parts and nesting plans
+ Automatically configured printing of nesting plan reports
+ Integrated report editor to customize the existing reports or to create your own reports
