The CAD CAM Software OmniWin 2023 is a simple, clear and fast designing and nesting software, which adapts intelligently to your machine and your cutting needs. It takes over all cutting tasks for order-based production with CNC thermal cutting machines.
OmniWin 2023 is effective and economical for small production runs in the machine and manufacturing industry, as well as in just-in-time manufacturing with changing quantities at custom cutting operations. You save time and materials and work with easy operations. OmniWin 2023 is the ideal tool for production planning with thermal cutting for oxyfuel, plasma and laser cutting with CNC machines.
IdeaI tool for production planning
Thermal cutting workshops have to solve numerous tasks in work preparation, before the production on the machine can start. Part geometries must be designed or taken over from customer drawings. Then the parts to be produced must be nested to minimise material usage. The NC nesting plan for the machine must ensure a fast, efficient processing with high cutting quality. While doing this, it should utilise the full technological capabilities of the machine, e.g. with the use of True Hole or Contour Cut.
Dramatic simplification of work process
Our CAD CAM Software OmniWin 2023 combines the highest technical flexibility with fast, efficient processing. At the same time you will reduce your costs by minimising material usage. The integrated operation with CAD, import and nesting for vertical and bevelled parts permits a dramatic simplification of your working processes.
- Excellent instrument for fast work
- Reduce your workload through the effortless export and import of drawings and plans
- Range of functions can be extended easily with options for special applications.
- Based on Microsoft SQL Server Technology
- Many new features to improve processes and increase productivity

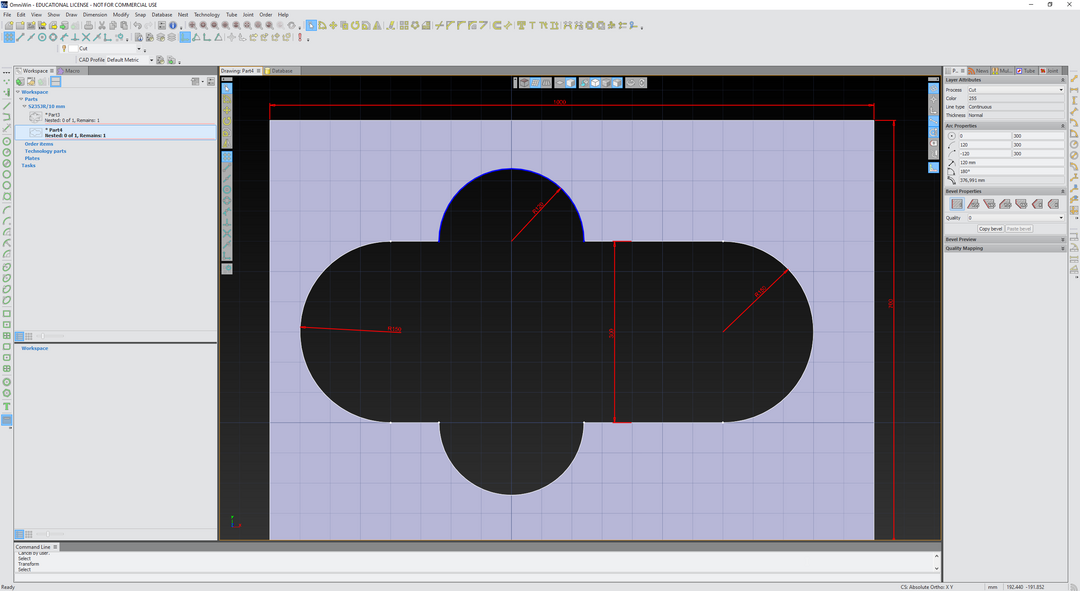

2D CAD System

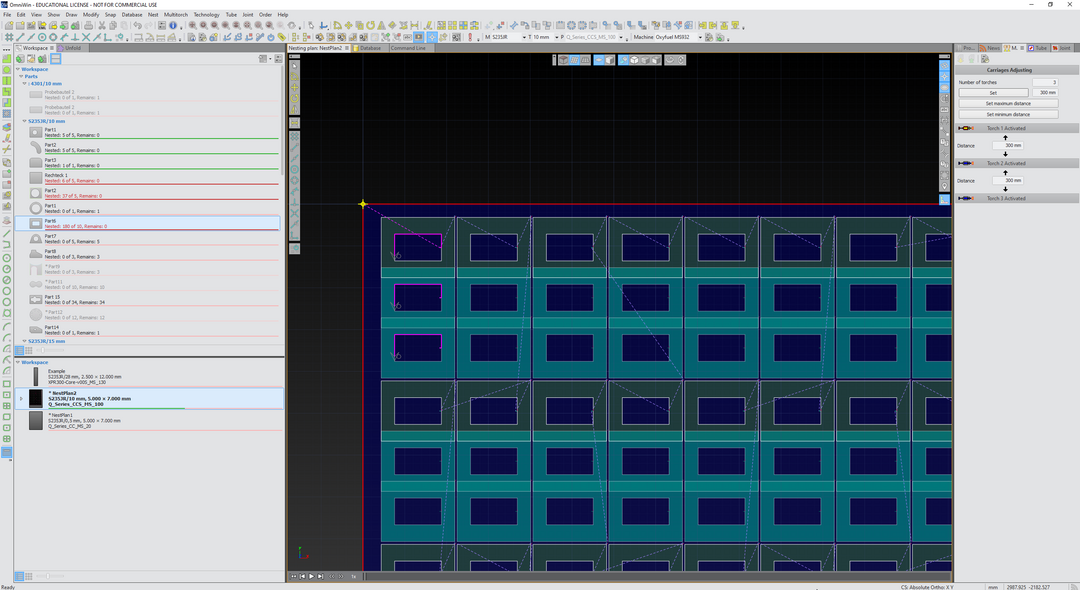

Multi torch support
Unfolding of 3D Geometries
|- Professional CAD Part and Plate Creation||X||X||X|
|- 3-D Visual Rendering of parts and plates||X||X||X|
|- Standard Shapes Library||X||X||X|
|- Text conversion for Cut-outs or Marking tasks||X||X||X|

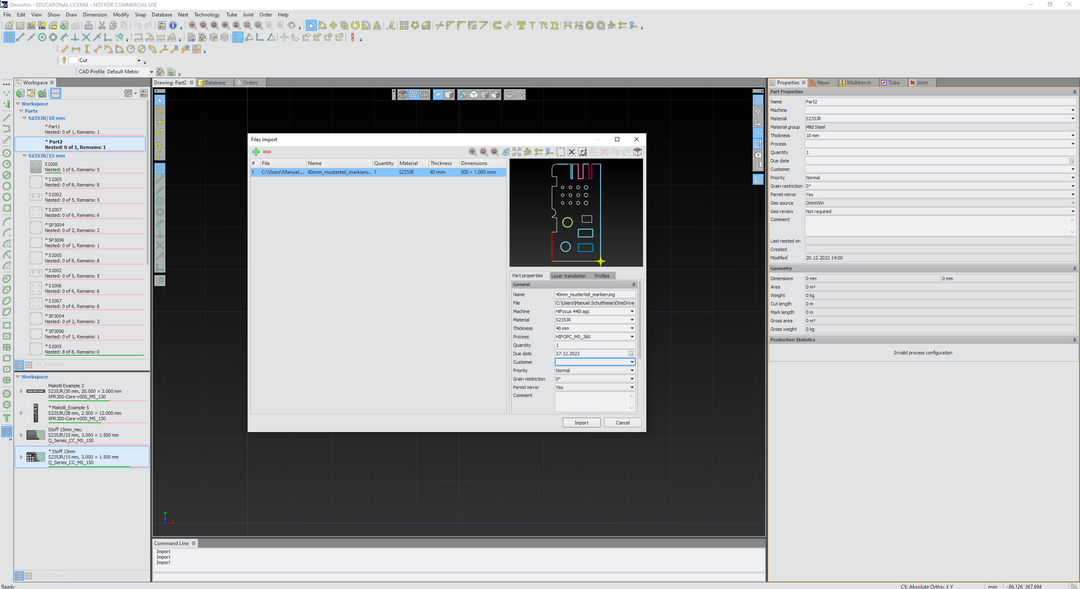

|- CAD Import - DXF, DWG, IGES, DSTV, SolidWorks* Part (SLDPRT) and|
Assembly (SLDAMP), Autodesk Inventor*
|- Read and Translate Administration Data||X||X||X|
|- Import of images in BMP, JPG, PNG or TIF file formats||X||X||X|
|- Import of nesting plans as DXF i.e. Auto Desk TRUNEST||X||X||X|
|- Reverse import of CNC files to DXF||X||X||X|
|- Automatic dimensioning of parts and plates||X||X||X|
CAD and Nesting
|- MS SQL Database for Parts, Nestings, Plates, Profiles and Machines||X||X||X|

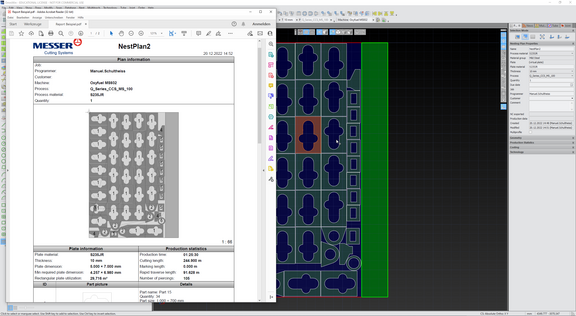

|- Fast Reports® Creator for professional reports||X||X||X|
|- Professional designed workspace||X||X||X|
|- Short Cut Keys||X||X||X|
|- Extensive dimensioning||X||X||X|
|- Extensve Snap Modes||X||X||X|
|- Manipulator Tool for rotation, copy, move and mirror||X||X||X|
|- Process Database||X||X||X|
|- Messer Hole Technology supports True Hole® or Contour Cut||X||X||X|
|- Production Time Estimation||X||X||X|
|- Automatic Lead-in/out with Customization||X||X||X|

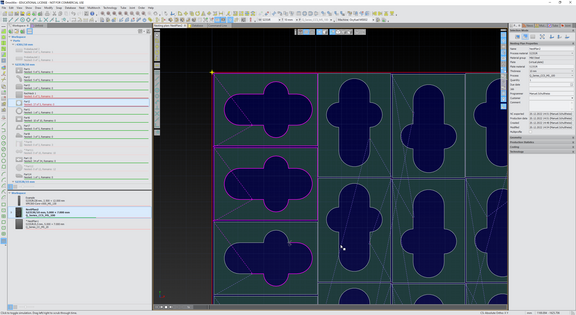

|- Cut Plan Simulator||X||X||X|

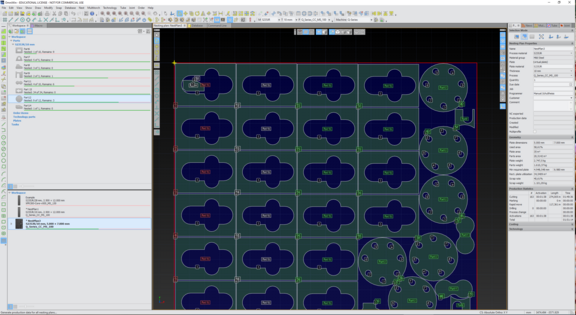

|- Interactive nesting (Row and Column, Pattern Matrix) with Single or Multi-Torch||X||X||X|
|- Collision Avoidance||X||X||X|
|- Process Optimization||X||X||X|
|- Modify Part, Interior Profile or Marking Sequence||X||X||X|
|- Technology Parts||X||X||X|
|- Manual Crop Cut||X||X||X|
|- Work Order Processing with Order Database||X||X|
|- Automatic Nesting||X||X|
|- Excel import of parts, order items and plates||X|
|- Stone Mold Cutting||X|
|- Stitches, Bridges, Common Cut, Corner Loops, Chain Cut, Automatic Corner|
|- Skeleton Cut Up||X|
|- Pre-Piercing and Pre-drilling (Option Drill required)||X|
|- Remnant Plate Creation with Auto Crop Cut||X|
|* A SolidWorls license is required with installation on the same PC|
|* * An Autocad Inventor or viewer is required with installation on the same PC|
Options for all Editions

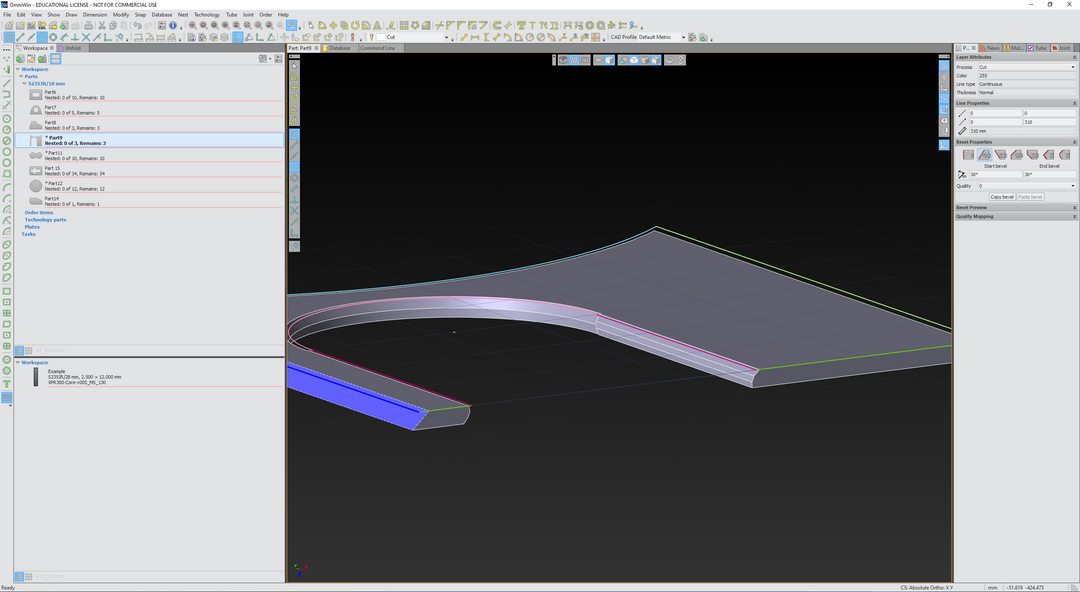

- Option Bevel - Bevel Part Creation
- Option STEP Import - Import nof 3D STEP Files
- Option Unfold - Unfold 3D Industrial Fittings
- Option Boiler End (requires Option Bevel) - Dome Cutting
- Option Mill - 2.5D Milling Support for Pocket Milling and Through Hole Milling (US only)
- Option Drill - Drill support
Although we are known for a 100 per cent focus on the requirements of cutting machine users, to us, the machine is only one component of the overall solution.
We offer our customers the most diverse solutions portfolio in the thermal cutting industry. Moreover, Messer Cutting Systems offers software solutions, original spare and wear parts, a broad spectrum of services and numerous additional options to upgrade your machine in an optimal way.
We are able to find the right end-to-end solution for your specific requirements: Contact us via the enquiry form and discover holistic solutions that will give you a decisive competitive advantage - today and in the future.
